Freezers Verticales de Ultra Baja Temperatura - 86 ºC
| brand: Labotecgroup.com | id: 218 / 328 /538 / 828 |

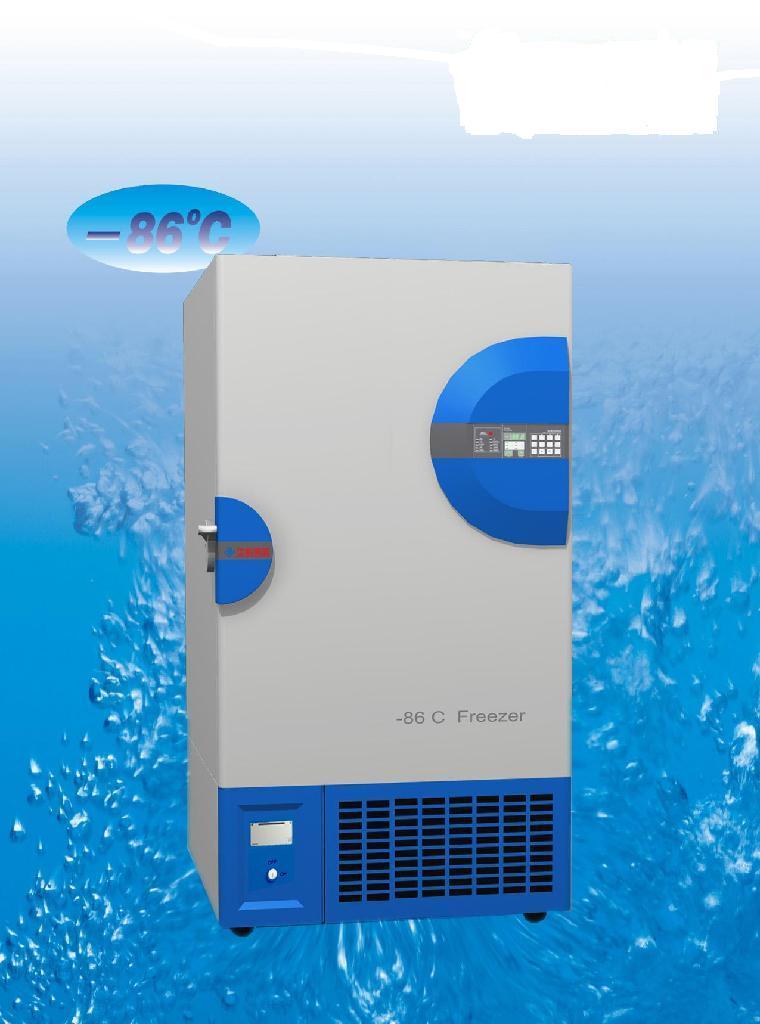

*- Freezers Verticales de Ultracongelado de - 86 ºC, marca Labotecgroup.com.-

-controlado por microprocesador digital.
-con sistema de alarma por sobre-temperatura
-220V/50Hz
-consumo: 1300 W

-Con paredes de 150 mm de ancho lo cual asegura una adecuada aislaciòn.
-Con motocompresor de la màs alta calidad.
-Transductor de resistencia de platino.
-Rango variable de temperatura de –40 ºC a - 86 ºC.
-Funciòn de bloqueo de teclado a fin de evitar cambios en paràmetros de uso.
-Sistema de Alarma audible y visible (por alta ò baja temperatura, bateria baja, apertura de puerta.

-modelo capacidad Precio CIF Dimensiones mm
218 218 litros US$ 6.400.- 940×840×1552
328 328 litros US$ 6.900.- 890×2005×1009
538 538 litros US$ 7.900.- 940×840×1999
828 828 litros US$ 10.950.- 996x1230x2056

-OPCIONALES:
-Backup de CO2
-Registrador de Temperatura


Freezers de - 86 °C de 388 lts. y 538 lts. / LINEA NUEVA
| brand: Lab-freezers.com | id: ULT-TC-388S ULT- |

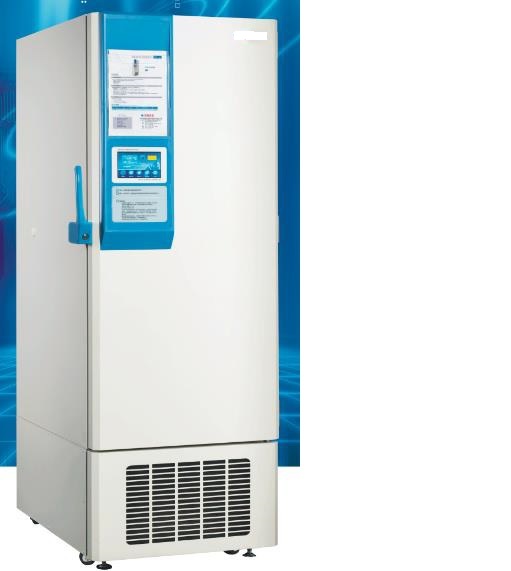

*-FREEZERS VERTICALES de ULTRACONGELADO : - 86 °C marca Labotecgroup.com Serie ULT-TC.-
De 388 y 538 lts.

-Certificados de Calidad: CE, ISO9001, ISO14001, ISO13485

Control System:
? Intelligent & 7 inch LED touch screen controller, blue-ray background light, easy using;
? Inside temperature can be set freely from -40°C~-86°C
? Safety alarm system included high or low temperature , power failure, Low battery level, door opening, filter blocking, system failure and etc;
? Machine startup delay, power off protection;
? 72 hours battery backup for controller display.
? USB interface for data storage
Structure Design:
? Independent 2 inner doors with foaming insulation inside for better temperature performance
? External high quality structure steel, inner 304 grade stainless steel, exquisite beauty, easy to clean;
? Front opening lockable door with full height handle;
? 3 high strength shelf made of SS304, resistant to corrosion and easy to clean;
? 100mm foaming insulation with Vacuum isolation panel to ensure the stability of temperature
? PT-100 platinum resistance sensors which is very sensitive to the temperature changing;
? keyboard lock and password protected to prevent the adjustment of the operating parameters;
? Fitted with 4 PCS casters & level feet for easy moving;
? Safety door lock, dual-door design;
? temperature recorder, warning lamp, smart temperature monitor system and CO2 back-up system is optional.
Refrigeration System:
? Adopted Embraco compressor, EBM fans from Germany;
? CFC-FREE patent mixture refrigerant ensure environmental protection & safety.
? Certificate: CE certificate, ISO9001, ISO14001,ISO13485


Specifications:

Modelo ULT-TC-388S ULT-TC-538S

PRECIO CIF US$ 7.900.- US$ 8.500.-

CAPACIDAD 388 litros 538 litros

Rango de Temperatura -40°C ~ -86°C
Compressor 1 pc 2 pc
Compressor brand Embraco
Fan motor EBM from Germany
Evaporator D-form copper tube
Shelves(adjustable) 3 pcs
Inner doors(foaming) 2 pcs
Inner material SS304
External material High quality structure steel
Door Lock Yes
Access test port: 1 as standard , diameter with 37 mm (optional with 2 or 3)

-OPCIONALES (precio CIF ) :

-Sistema de back-up de CO2 US$ 2.700.-
-Registrador de Temperatura US$ 800.-
-Smart monitor system US$ 1.300.-
-ULT-TC-388S:Inventory rack with box(12/300) US$ 2.300.-
-ULT-TC-528S:Inventory rack with box(16/400) US$ 2.700.-

External size(WDH) 758×1064×1959mm 930×1064×1959mm
Internal size(WDH) 440×696×1266mm 585×696×1266mm
Alarm system Visual & Audio
Input Power 1000W 1800W
Voltage 220V/50Hz (110V/60Hz)
Refrigerant CFC-Free Mixture gas
Climatic N
NW/GW 320/345 kgs 360/390kgs
