Bomba Calorimetrica
| brand: Labotecgroup.com | id: A1YRX |

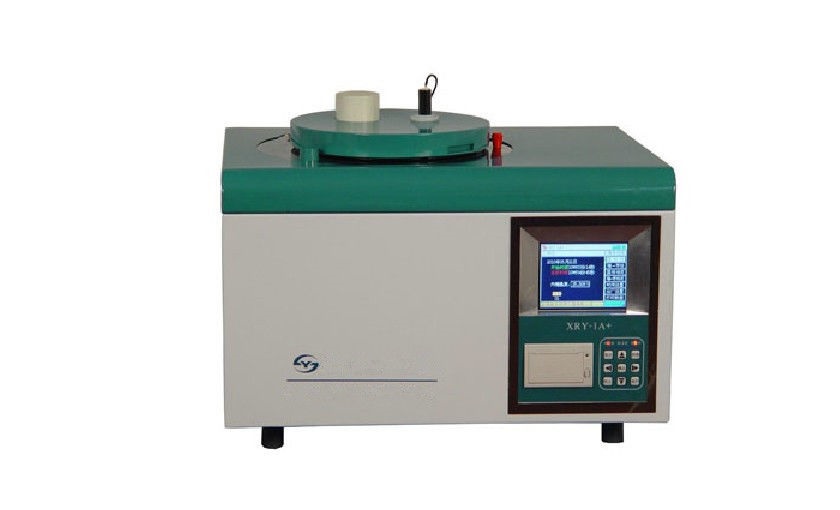

*-BOMBA CALORIMETRICA DIGITAL (Digital Oxygen Bomb Calorimeter) marca LABOTECGROUP.COM modelo A1YRX, 14000-15000J/K.-
-Principio de funcionamiento: ADIABATICO
-Proceso: AUTOMATICO
-El llenado de oxigeno es manual y no necesita bomba de oxigeno, el equipo tiene regulador de oxigeno. El oxigeno requerido es de 99,5 % de pureza y la presión necesita ser más alta que 3.0 Mpa (el oxigeno electrolítico no es apropiado)
-Medición de temperatura: DIGITAL, de termocupla.
Summary
The instrument is designed and made as per the GB/T213-2008 Test Method for Calorific Value of coal, GB/T384-1988 Test Method for Calorific Value of Petroleum Products and Calibration Regulation JJG672-2001 Oxygen Bomb Calorimeter.
I. Main technical features
1.The instrument adopts technology of single chip machine, LCD screen, high accuracy temperature sensor and high performance A/D conversion device. It is a highly intelligent instrument.
2.The test procedure is fully automatic. After placing the sample and inputting the right parameters, the instrument will finish all the procedures without manual interference. It will print the test data directly after test is over.
3.This instrument adopts sealed oxygen bomb. The whole structure adopts stainless steel material.The strength is enough to resist 20MPa hydrostatic test under room temperature.
II. Main technical specifications and parameters
1. Heat capacity: 14000 J/K?15000 J/K
2. Measuring range: (10?35)?
3. Resolution: 0.001 K
4. Measurement accuracy: ± 60J/g
5. Repeatability error: ?0.2% (Grade C)
6. Pressure endured of oxygen bomb: 20 MPa
7. Temperature measurement range: 10 ??28 ?
8. Relative humidity: ?85%
9. Power supply: AC 220V±5%, 50 Hz
10.Overall dimension: 600mm*480mm*460mm
PRECIO CIF TOTAL --------------------------------------- US$ 12.900.-
(dólares americanos DOCE MIL NOVECIENTOS)
-CONSUMIBLES NECESARIOS PARA 500 (quinientos) ENSAYOS:
-Detalle -Precio CIF
-Benzoic Acid (15bottles/1050pcs)------------------------------------------- US$ 3.360.-
-IGNITOR FUSE ( 10 ROLLS )----------------------------------------------- US$ 260.-
