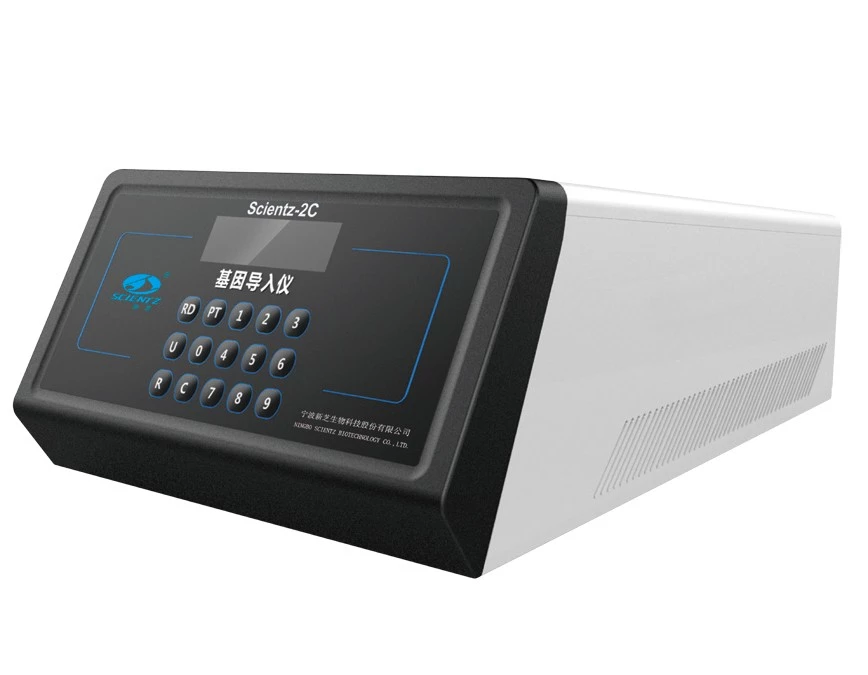

Electroporador
| brand: Labotecgroup.com | id: DE-2 |
The instrument is widely applicable to the electro-perforation of microorganism cells of animals and plants and is also used for cell hybrid and mixing as well as gene electroporation. The instrument is of a complete set with man-computer dialog interface. It is simple in operation and visual in apperance, and the detailed setting range of capacitance and resistance makes the electro-perforation experiment of cells more selective under the related conditions.
Characteristics
Networking of gene importer systems
General intelligent instrumentation has two-way communication functions, but this two-way communication function is far from the true network communication.
Along with the rapid development of network technology, Internet technology enables the gene importer to realize network at the same time on the basis of intelligentization, so that the on-site measurement and control parameters are close to the network and have the necessary information processing functions.
Main technical parameters:
High Output voltage
400-2500V
Low output voltage
100-450V
High voltage capacitor
1?5?6?25?30?31UF
Low voltage capacitor
100UF?125UF?150UF…1675UF?one grades of 25UF
Resistance
50?100?150?1600?-?total 30 grades
Operationg system
Microcomputer control
Output waveform
With RC time constant of the exponential decay of wave
Dimension
36.8*31.6*22.9(cm)
Weight
10.5Kg
Packing size
480*420*280mm
