Fermentador de 200 Litros
| brand: Labotecgroup.com | id: BIO-F-200 |

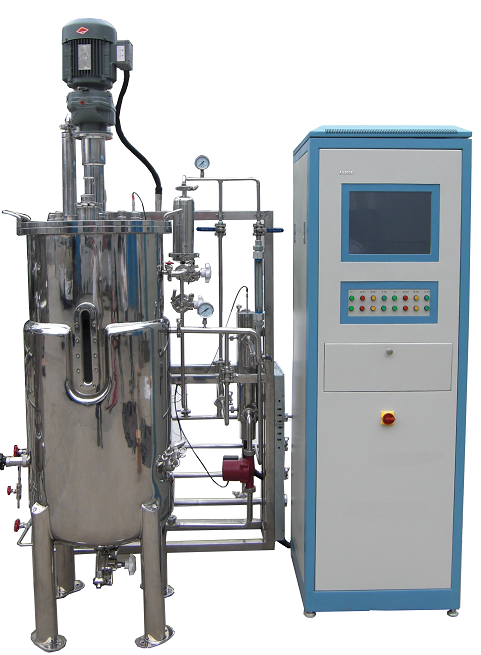

*-FERMENTADOR DE 200 LITROS marca LABOTECGROUP.COM modelo BIO-F-200.-
Features?
?It is a direct driven with high toque motor fermentor with 316L stainless steel vessel.
?It contain a ABCS Bioprocess Controller which has a large size touch LCD screen(15” at least ):
? Measurement and control parameters: temperature , pH , DO , agitator speed , antifoam, air flowrate(manual), pressure(manual)
? Control mode: manual control, automatic control, sequence control
? The controller also can display the trends, historic trends, report forms and so on.
2. SPECIFICATIONS
(1) Basic Systems
?.Class Vessel: Working volume:200L
?.Agitation: 50~400rpm±5rpm?
?.Temperature :(temperature of cooling media + 5?)~60?±0.2?
(PID with pulse-width modulation of heater in waterbath & cooling water)
?.pH :2.00~12.00±0.05pH
(Sensor: METTLER pH sensor)
PID with pulse-width modulation
Two pumps each assignable to function for acid, base.)
?.D.O. : 0~150±3% . Digital display in 0.1% increment
(Sensor: METTLER D.O. sensor
PID with pulse-width modulation
Via agitation module or flowrate module)
?.Anti-Foam: PID on/off control with a pump
?.Nutrition: on/off control with a pump
? flowrate: air 0~200L/min (manual)
?.Pressure :0-0.3MPa(manual)
?.Electrical Date:Power-380AC , 9 kW
(2) You can choose some additional functions such as(OPTIONAL):
? Measurement and control of air flowrate , pressure and level
? Measurement of O2 , CO2 exhausting
? Add two pumps for Nutrition
? Add electron balance systems
Control system:
No. Parameter name Technical indicator
1. Tank 1. work volume 200L
2. H/D 2:1
3. Wetted parts SS316L, and others SS304. Inside surface <0.4 um mechanical or electro polishing. All gasket, septum and o-rings made of silicon/EPDM
4. Top Spray ball for CIP system
2. PH 1.On-line check and measure, and digitization fully automatic control;
2.PH, acid and base cascade control. Peristaltic pump automatically adjust to feed acid and base;
3.Control range 2-12pH, measure precision±0.01 pH, control precision±0.02 pH;
4. It has auto alarm function.
5.pH sensor and signal transmission line from Switzerland.
3. DO control 1.On-line check and measure, DO and rotate speed cascade control;
2.Range 0-100% or 0-150%, precision ±1%;
3. It has auto alarm function;
4. DO sensor and signal transmission line from Switzerland.
4. Foam control 1.Automatically control and automatically alarm;
2.Eletrode check, peristaltic pump automatically add antifoamer.
5. Feed control 1.Maunally control;
2.Compressed air swaging .
6. Temp. control 1. PID fully digitization signal processing, digitization control settings
2. Circulating water automatically control temperature
3. Measure range 0-150?, control range 15-45?,control precision±0.5? 4.Pt 100?temp. Sensor
7. Rotate speed 1. Fully automatic control settings, With automatic alarm function
8. Sterilization 1. Manually control
9. Pressure Checking by pressure gauge, manually control, range 0-0.4Mpa.
