Equipos PCR en Tiempo Real
| brand: Labotecgroup.com | id: |
EQUIPOS PCR EN TIEMPO REAL marca LABOTECGROUP.COM en las siguientes versiones:

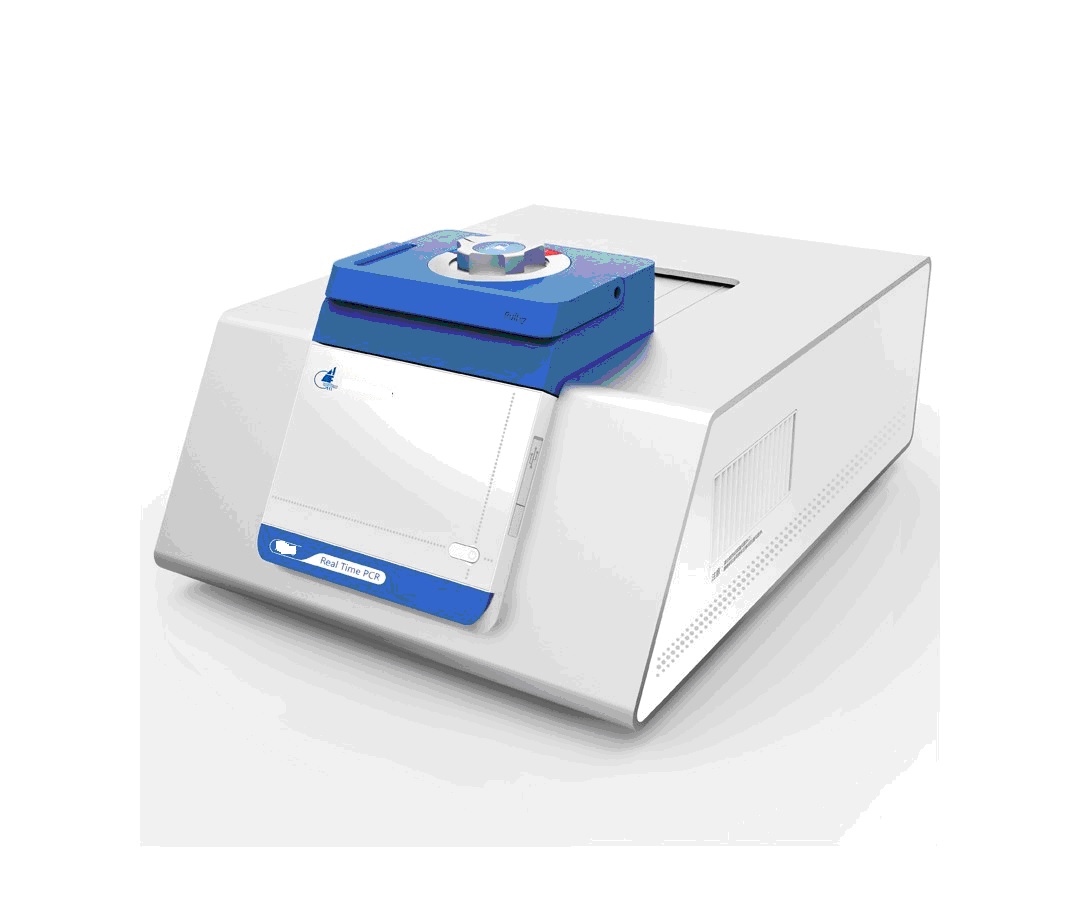

The X960 real-time PCR system is high performance benchtop instrument giving you greater control of your experiment data. It delivers reliability, sensitivity, and accuracy, which is optimized to enable the broadest range of quantitative PCR applications.
Features
Innovative Optical Design
Two channel (A069X) and five channel (B069X) fluorescent detection system with LED light source and high resolution CCD
The optical system automatically collects data from all wells during data acquisition at the same time.
069X can discriminate up to five targets in a single reaction well.
The optical filter sets are designed to maximize fluorescence detection for specific dyes in specific channels
Compatible with different reagent and consumables
Precise Temperature Control
Block utilizes most advanced Peltier-based technology with high amplification efficiency
Up to 6?/s maximum ramp rate saves your valuable time dramatically
Two independent temperature control mode- block and tube, maximize control flexibility
Excellent temperature uniformity limits the variation between wells, ensuring the accuracy of low copy sample
-ALTERNATIVA NRO. 1:
*-EQUIPO PCR EN TIEMPO REAL marca LABOTECGROUP.COM modelo A069X.-
-2 CANALES
Order No. A069X
Model A069X
Unit Price
Description 069X Real-Time PCR detection system
Channel 2
Reaction per run 96
Block Format 96-well 0.2 ml
Color combinations Up to 2
Light Source High brightness monochrome LED
Detector High sensitive cold light CCD
Detection dynamic range 10^2?10^10
Sensitivity Down to 1 copy
Reaction volume 15ul -100ul
Chemistry all real-time PCR-based chmistries. Flexibility for chemistries with or without passive reference dye
Excitation source White LED
Excitation filters/colors Channel 1- 470nm; Channel 2- 525nm
Detection filters/colors Channel 1- 520nm; Channel 2- 570nm
Kits & Reagent Channel 1- FAM/SYBR; Channel 2- VIC/HEX/JOE/TET/TAMRA
Block Material Peltier
Accuracy ?±0.1?
Uniformity ±0.4? (10 sec after reaching 95?); ±0.2? (10 sec after reaching 55?)
Temperature range 0-100?
Max ramp rate 6?
Gradient range 30-100?
PC operation system Windows XP/VISTA/Windows7/Windows8
X960 operation system Linus
CPU A8
Communication LAN/Wi-Fi
Multiple control Support
Application Available Gene Expression, Genotyping, Copy Number Variation, Protein Detection, MicroRNA, Pathogen Detection
Dimension(L*W*H) 592mm*440mm*280mm
Package dimension(L*W*H) 840mm*710mm*530mm
Net Weight (Kg) 28.5
Gross Weight (Kg) 60
Power Supply Standard configuration 220V/50HZ
Available upon special request 220V/60HZ, 110V/60HZ
Please note: Power supply is defaulted as standard configuration. Please remark on special request. Shipment date for special request might be later than standard configuration, please contact our salesperson to confirm.
Notice
-ALTERNATIVA NRO. 2:
*-EQUIPO PCR EN TIEMPO REAL marca LABOTECGROUP.COM modelo B069X.-
-5 CANALES
Order No. B069X
Model B069X
Description 069X Real-Time PCR detection system
Channel 5
Reaction per run 96
Block Format 96-well 0.2 ml
Color combinations Up to 5
Light Source High brightness monochrome LED
Detector High sensitive cold light CCD
Detection dynamic range 10^2?10^10
Sensitivity Down to 1 copy
Reaction volume 15ul -100ul
Chemistry all real-time PCR-based chmistries. Flexibility for chemistries with or without passive reference dye
Excitation source White LED
Excitation filters/colors Channel 1- 470nm; Channel 2- 525nm; Channel 3- 585nm; Channel 4- 625nm
Detection filters/colors Channel 1- 520nm; Channel 2- 570nm; Channel 3- 620nm; Channel 4- 675nm
Kits & Reagent Channel 1- FAM/SYBR; Channel 2- VIC/HEX/JOE/TET/TAMRA; Channel 3- ROX/TEXRAD; Channel 4- CY5
Block Material Peltier
Accuracy ?±0.1?
Uniformity ±0.4? (10 sec after reaching 95?); ±0.2? (10 sec after reaching 55?)
Temperature range 0-100?
Max ramp rate 6?
Gradient range 30-100?
PC operation system Windows XP/VISTA/Windows7/Windows8
X960 operation system Linus
CPU A8
Communication LAN/Wi-Fi
Multiple control Support
Application Available Gene Expression, Genotyping, Copy Number Variation, Protein Detection, MicroRNA, Pathogen Detection
Dimension(L*W*H) 592mm*440mm*280mm
Package dimension(L*W*H) 840mm*710mm*530mm
Net Weight (Kg) 28.7
Gross Weight (Kg) 60
Power Supply Standard configuration 220V/50HZ
Available upon special request 220V/60HZ, 110V/60HZ
Please note: Power supply is defaulted as standard configuration. Please remark on special request. Shipment date for special request might be later than standard configuration, please contact our salesperson to confirm.
Notice
Equipo PCR en Tiempo Real
| brand: Longgene | id: Q2000 |
-EQUIPO (SISTEMA) PCR en Tiempo Real, marca LONGGENE modelo Q2000.-
Features
1. Top brand Peltier elements from MARLOW(U.S.A)adopted, ensure long life of 1,000,000 cycles and fast ramping rate up to 6?/s.
2. T-Optical™ technology, reduce background noise, improve fluorescence signal sensitivity and signal to noise ratio.
3. The angle of display could be adjusted to the best view.
4. 96 wells* 6 channels, simultaneous detection of wells, not in sequence.
5. User could view PCR process and run PCR protocol through self-contained 10’’ TFT LCD and touch screen.
6. Special designed optical system for PCR, avoiding more moving parts problems like overheat, wear and off center. Not optical fiber based, avoiding break and block.
7. Long life LED lamps to excite fluorescence and detect with SSLP™ CCD imaging technology.
8. Sample wells with temperature gradient function, convenient to optimize PCR conditions.
9. The drawer design of sample block, makes it easier to pick and place PCR tubes & plates.
10. The PCR analysis software could be upgrade for free.
Technical Specifications
Instrument Performance
Sample Block Capacity 96 wells * 0.1ml
Reaction Volume 10-50ul(recommend 20ul)
Tubes Option Low profile, white or clear PCR tubes or strips or 96 well PCR plate, with optical flat cap
Heating and Cooling Technology New powerful Peltier Technology
Control Methods Operated via PC or self-contained touch screen on instrument
Temperature
Block Temperature Range 0??105?
Max. Heating Rate 6?/s
Max. Cooling Rate 5?/s
Temperature Uniformity ?±0.2?(at 90?)
Temperature Accuracy ?±0.1?(10 seconds after reach 90?)
Display Resolution 0.1?
Heat Lid Temperature Range 30?~112?
Temperature control Mode Block & Calculated sample
Gradient Range 30?~100?
Temp. Differential Range 1?~30?
Fluorescence Detection
Calibrated Dyes at Factory
Excitation Long life LED lamps
Detection CCDs
Channel 1 FAM?SYBR GREEN
Channel 2 VIC?HEX?JOE?CY3?NED
Channel 3 ROX?TEXAS-RED
Channel 4 CY5
Channel 5 CY5.5
Channel 6 Reserved
Fluorescence Excitation Range 300 — 800nm
Fluorescence Detection Range 500 — 800nm
Data Export Formats Excel, TXT
Dynamic Range 1~1010
Sensitivity ?1 copy
Fluorescence Detection
AC power supply 100V ~ 240V, 50-60Hz
Consumption 600W
Dimension (L×W×H) 334×280×365mm
Net Weight 13KG
Computer Operating Systems Windows10?Windows7?Windows XP

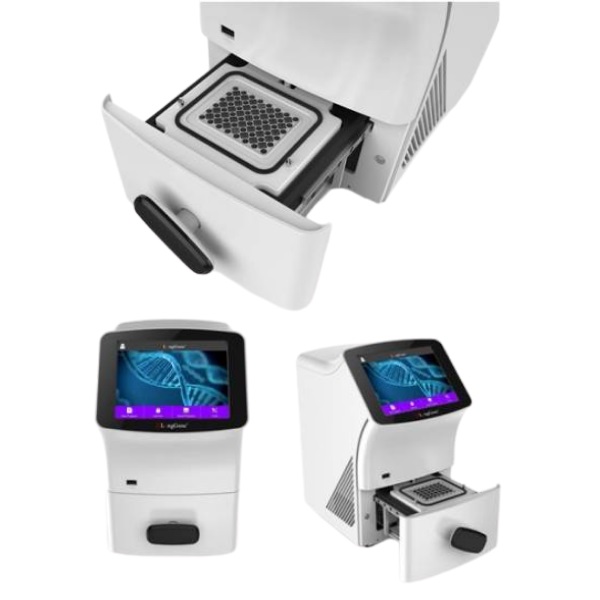

Termociclador en Tiempo Real
| brand: LongGene | id: Q1000+ |
Termociclador REAL TIME para el diagnóstico de virus, modelo Q1000+. Marca LongGene
STOCK:
Ventajas:
Sistema Peltier que permite una velocidad superior a 7°C/seg.
Tecnología T-Optical™ que reduce las interferencias y ruidos mejorando la relación sensibilidad/señal.
Lectura simultánea de las muestras y no secuencial.
Pantalla LCD táctil de 7 pulgadas.
Iluminador LED de larga duración sin mantenimiento y detector fotoeléctrico de alta sensibilidad.
Sistema de detección síncrono de dos colores, que reduce los errores causados por el retraso y acorta el tiempo de escaneo.
No se requiere calibración con tinte ROX, garantiza pozos de fluorescencia extremadamente uniformes.
El software se puede actualizar de forma gratuita de por vida.
Especificaciones:
Modelo: Q1000 +
Capacidad del bloque: 48 pocillos x 0.1 ml
Volumen de reacción: 10-50ul
Opción de tubos: Tubo de PCR de 0,1 ml blanco o transparente de bajo perfil / tiras de 8 tubos con tapa plana óptica
Tecnología de calentamiento y enfriamiento: La tecnología Peltier de nueva generación permite 1.000.000 de ciclos.
Métodos de control: Operar a través del control de PC o la función Iimited en el instrumento
Idioma: Inglés
Puertos de comunicación: USE 2.0 & LAN
Monitor: Pantalla táctil TFT a color de 7 "
TEMPERATURA
Rango de temperatura de bloque (en grados centígrados): 0 -105
Velocidad de calentamiento máx.: 7 grados centígrados/ seg
Tasa de enfriamiento máx.: 5 grados centígrados / seg
Uniformidad de temperatura (en grados centígrados): ± 0.2
Precisión de temperatura (en grados centígrados): ± 0.1 (10 segundos después de alcanzar los 90 grados)
Resolución de pantalla (en grados centígrados): 0.1
Rango de temperatura de la tapa (en grados centígrados): 30 - 112
Modo de control de temperatura: Bloque y modo Sim-tube
Rango de gradiente (en grados centígrados): 30 -100
Rango diferencial de temperatura (en grados centígrados): 1 - 24
MÓDULO ÓPTICO
Excitación: LED de larga vida
Detección: Detector fotoeléctrico de alta sensibilidad.
Gama dinámica: 1-10¹º
Sensibilidad de detección: mayor o igual a 1 copia
Tintes calibrados en la instalación: Canal 1: FAM, SYBR
Canal 2: VIC, HEX, TET, JOE, CY3, TAMARA, NED, Canal 3, ROX, EXAS-RED
Canal 4: CY5
Rango de excitación de fluorescencia: 300-800nm
Rango de detección de fluorescencia: 500-800nm
Formatos de exportación de fecha: Sobresalir. TXT
OTRAS CARACTERÍSTICAS
Fuente de alimentación del interruptor global: 100V-240V, 50-60Hz
Consumo: 400W
Peso neto: 8.2kg
Dimensiones (ancho, profundidad, altura): 320 × 205 × 380 mm
COMPUTADORA
Sistemas operativos: Windows7, Windows10, Windows XP
Garantía: 1 año
